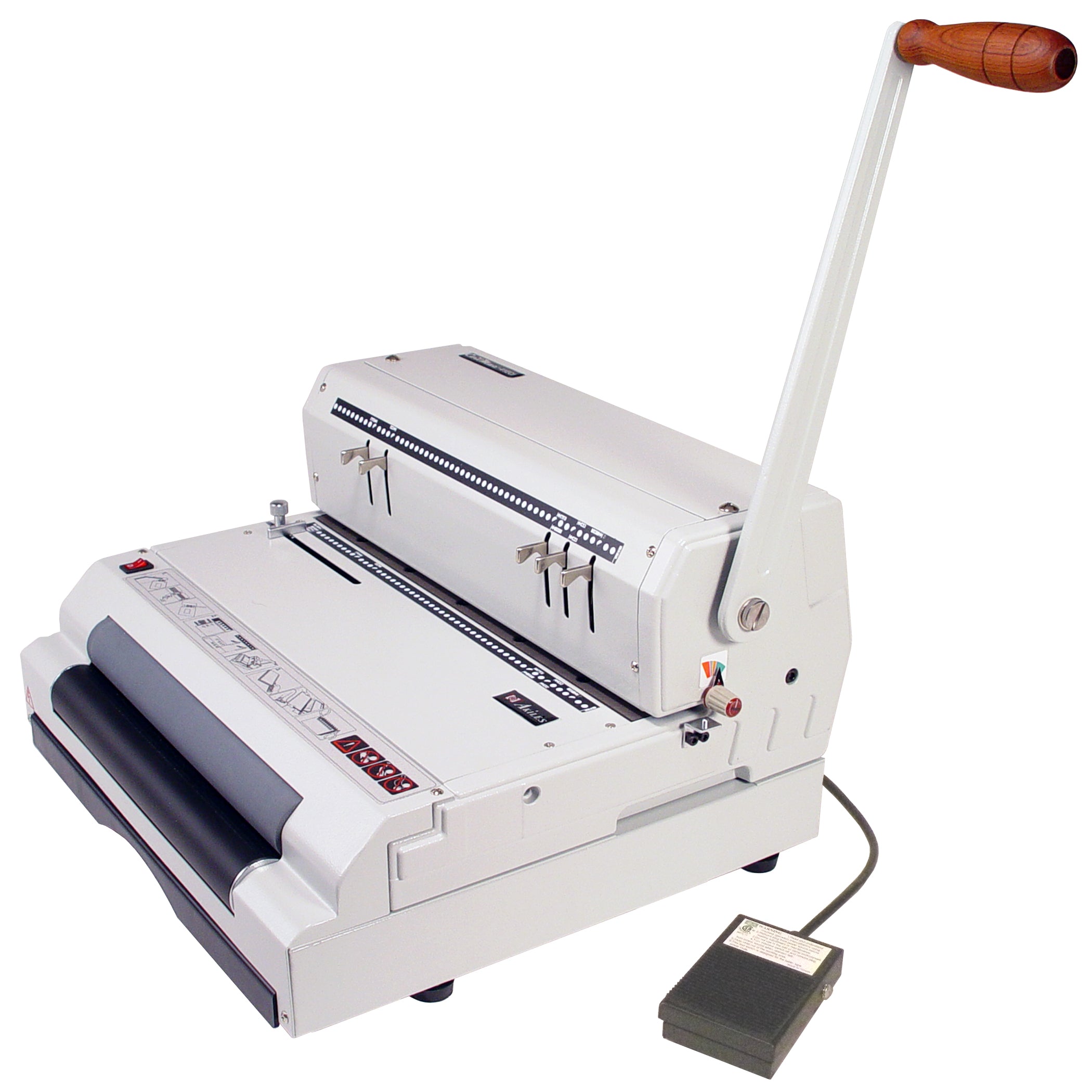

Akiles CoilMac-ECI Manual Coil Punch with HD Electric Coil Inserter - Round Holes

• 5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECI very simple to use.

• STANDARD 4:1 Pitch (0.250”): Standard pitch for coil binding. Punches 43 holes in a 11” sheet.

• • Extended Single Punching Length (13″): With open ends & continuous punch guide to easily punch documents of any length (up to 26″).
    • High Volume Punch Capacity: Suggested up to 20-sheet* for 20 lbs paper, or 2.6mm (28-sheet equivalent)** for hardboard, in 13″ length (53 holes).
    • Super Strength Punch Mechanism with exclusive “Precision Guiding System^TM” Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system” guarantees a sharp & clean perforation everytime.

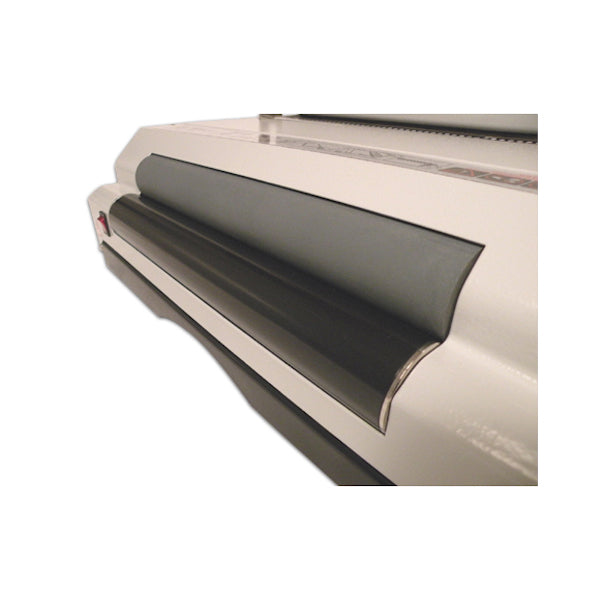

    • Full Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism: 11-3/8″ EPDM roller provides high friction and durability, making this inserter one of the easiest-to-use & most durable. Front-mounted roller position gives operator greater control & improves efficiency. Foot-pedal operated. Plastic & Metal coil compatible.
    • Industrial-Grade Roller Motor: Heavy-Duty motor (3 times heavier-duty than other similar machines in its class).
    • Side Margin Control: Provides an evenly centered punch for all document sizes.
    • Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document’s tear resistance.
    • Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26″.
    • Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
    • Large Waste Drawer and Non-Skid Feet
    • CE Certification: All components certified & approved by CE for most stringent safety requirements
    • ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards.
    • Includes Coil Diameter Selector & Premium Oval Coil Crimpers



  Specifications

  Model:	CoilMac-ECI
  Pitch Available:	Standard 4:1 (0.250”). [ Other pitches also available upon special request ]
  Operation:	Punching – Manual Inserting – Electric (with built-in Heavy-Duty Electric Roller)
  Single Punch Capacity:	Up to 20 sheets for 20 lbs paper* Up to 2.6mm for hardboard (28-sheet equivalent thickness)**
  Suggested Binding Capacity:	Up to 7/8″ (electric) Up to 2″ (manual)
  Single Punch Length:	13″ (53 holes)
  Hole Size:	Round (4mm)
  Disengageable Pins:	5 out of 53
  Weight & Volume:	52 lbs & 2.8 CbFt
  Warranty:	1 year
