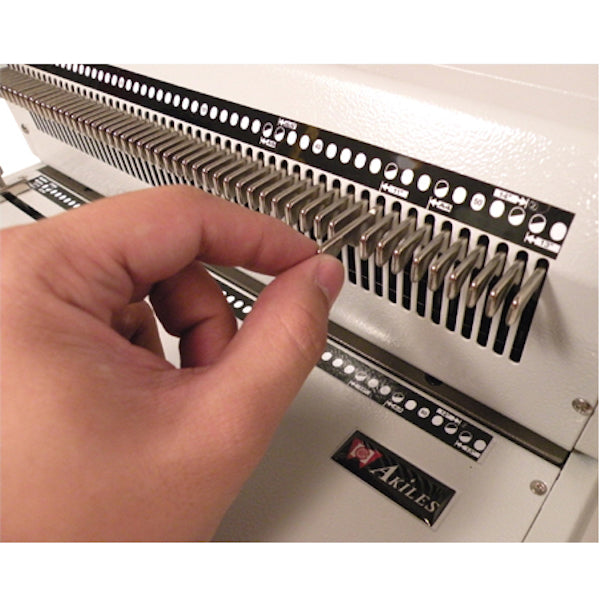

• FULLY Disengageable Pins: For a completely clean & professional punching ofany paper size, all 54 pins can be independently pulled & disengaged.

• LETTER 4:1 pitch (0.248”): This revolutionary 0.248” coil pitch is specifically designed to give you 44 evenly-centered holes in an 11” sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with STANDARD 4:1 pitch coils.

• Common Features:

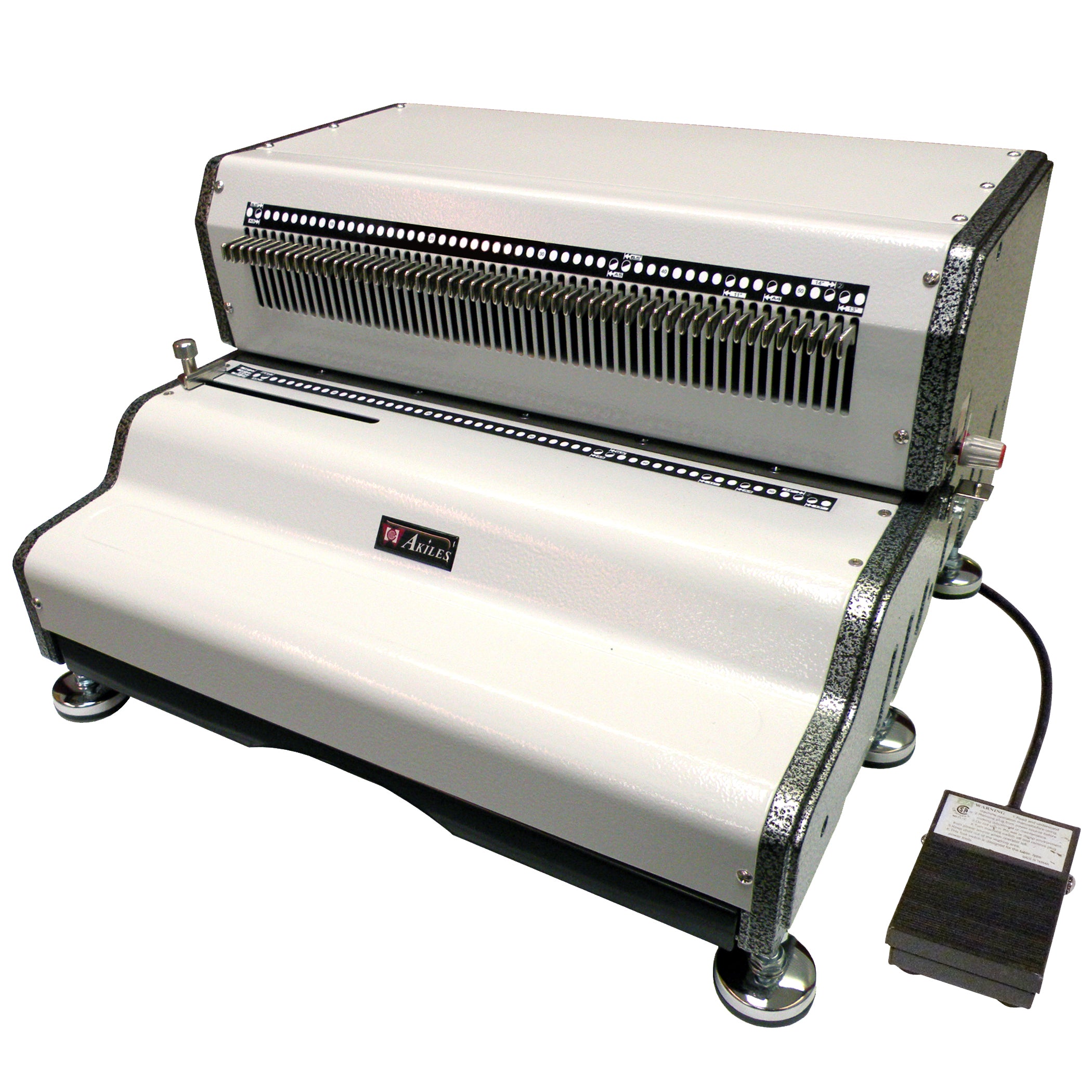

  • Electric Punch Operation: Powerful punching capability with a simple press of foot pedal.

  • Extended Single Punching Length (13″): With open ends & continuous punch guide to easily punch documents of any length (up to 26″).
  • High Volume Punch Capacity: Suggested up to 25-sheet for 20 lbs paper, or 2.6mm (28-sheet equivalent) for hardboard*, in 13″ length (53 holes).
  • Super Strength Punch Mechanism with exclusive “Precision Guiding System&trade” Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system” guarantees a sharp & clean perforation everytime.
  • Electric Reverse (Anti-Jam) Function: For trouble-free punching.
  • Finish@Coil Compatible: Included mounts allow for a Finish@Coil-M or E1 to be securely mounted on top of the CoilMac-ECP41 or ECP41+ (sold separately). This upgrade will offer operator the electric binding and/or crimping feature, on all coil sizes (up to 50mm).

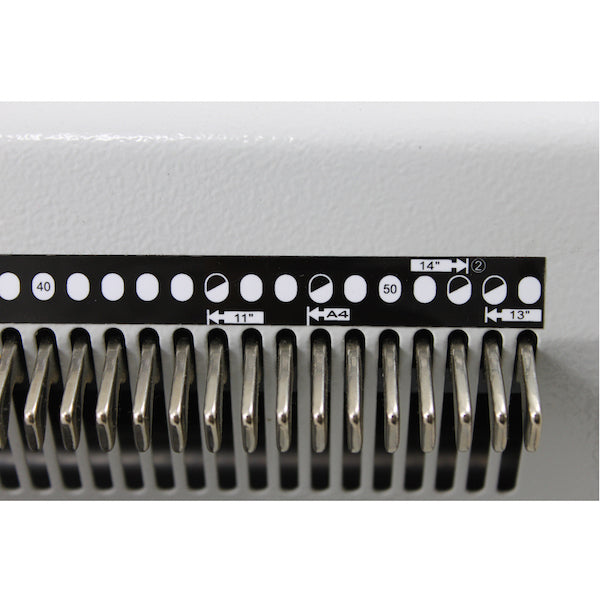

  • Side Margin Control: Provides an evenly centered punch for all document sizes.

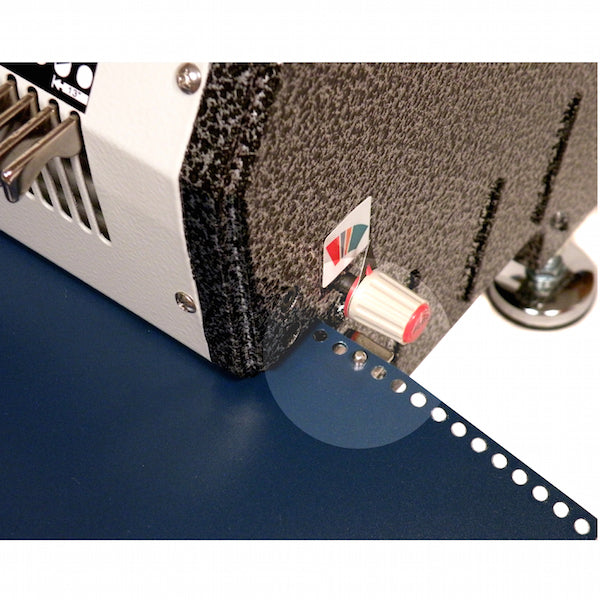

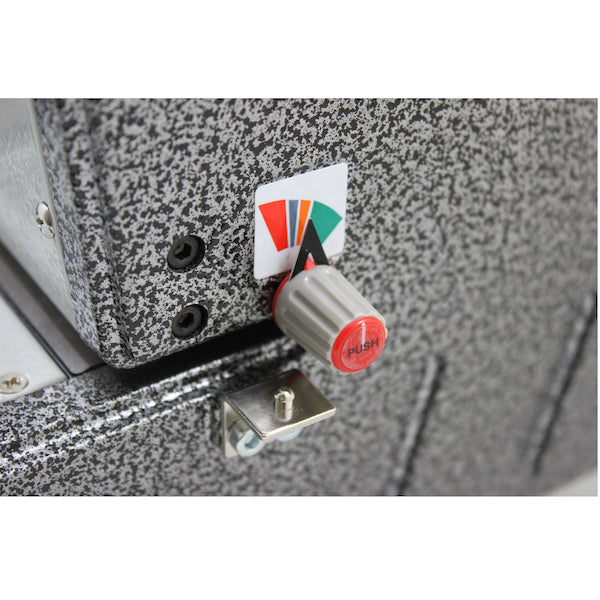

  • Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document’s tear resistance.
  • Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26″.
  • Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
  • Extra-High-Capacity Waste Drawer
  • 6 Height-Adjustable Non-Skid Metal Feet
  • CE Certification: All components certified & approved by CE for most stringent safety requirements.
  • ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards
  • Includes Coil Diameter Selector & Premium Oval Coil Crimpers

  Specifications


  Model:		CoilMac-ECP41+
  Punching Operation:	Electric
  Pitch:		Letter 4:1 (0.248″)
  Hole Size:		Oval (4mm x 5mm)
  Disengageable Dies:		All 54
  Punching Length:		13.5″ (54 holes)
  Punching Capacity:	Up to 25 sheets (20 lbs paper)
  Finish@Coil Mounting Bracket:	Compatible with Finish@Coil-M or E1
  Binding Capacity:	Up to 2″ (with Finish@Coil-M or E1)
  Weight & Volume:	60 lbs & 4.33 CbFt
  Warranty:	1 year
