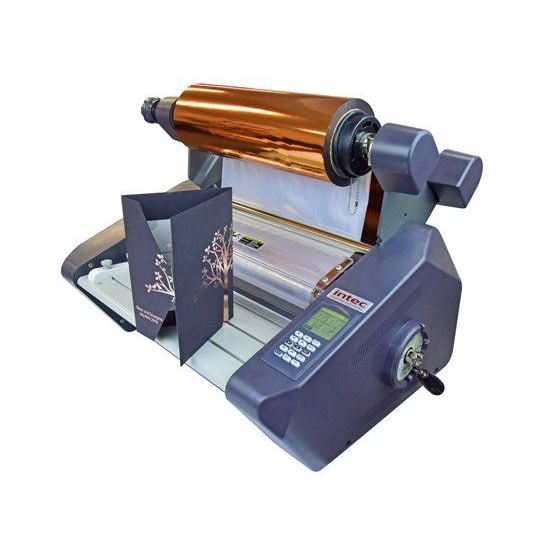

INTEC ColorFlare CF350 Foil Fuser & Single Sided Laminator

INTEC ColorFlare CF350 Foil Fuser & Single Sided Laminator

$3,899.00 $4,499.00 $4,499.00 /
Subscription

Remind customers of offers like free shipping and lifetime warranties.

Desktop CF350 model, foiling and lamination system

The brand new ColorFlare CF350 model delivers stunning metallic foiling, lamination and holographic effects – direct from your desktop!

Easily add stunning metallic and colored foils, or lamination including matt, gloss and digitally over-printable soft-touch, as well as a wonderful range of holographic effects – to transform ordinary printed sheets into ‘extra-ordinary’ premium print work.

Foiling, lamination and flaring effects are possible with this single desktop solution. Offering class-leading affordability, CF350 uses 3″ (77mm) core rolls providing a more cost effective production solution. This simple in-house process requires no expensive blocks or dies.

Typical applications include • Packaging • Presentation folders • Business cards • Certificates • Menus • Book covers • Wedding stationery • Labels • Swing tickets • Point-of-sale • Photo albums • Gift vouchers • Posters • Gift boxes

CLICK HERE FOR PRODUCT SPEC SHEET

SPECIFICATIONS:

  • Laminating speed: 1.3m/min
  • Base substrate thickness:Lamination: 80gsm to 350gsm, Foiling: 120gsm to 350gsm
  • Paper Size:Maximum: 330mm to 500mm, Minimum: 180mm x 230mm
  • Warm-up time:5 minutes
  • Heating system:Infrared heater
  • Laminating temperature:Top roller: maximum150°C, Bottom roller: maximum 100°C
  • Temperature control:Control panel push button
  • Speed control:Control panel push button
  • Display system:LCD display
  • Roller pressure:Adjustable manual handle
  • Film core size:77mm (3″)
  • Air cooling system:Dual fan system
  • Temperature sensing method:Internal thermo-couple
  • Rear trimming knife:Blade for end of job trimming
  • Power requirement:AC 220~240V, 50/60Hz, 7A
  • Power consumption:1.5kw
  • Dimensions (WxLxH): 580 x 500 x 430mm
  • Weight: 35kg

        FEATURES

        • Ideal entry level machine for: – gloss & matt lamination – over-printable soft touch lamination – gloss & matt lamination – metallic & coloured foiling – holographic effect films
        • Handles SRA3 + media
        • Easy continuous feed
        • Adjustable pressures for different applications
        • Tension control
        • De-curling bar for flatter sheets
        • Heated top and bottom rollers designed to apply overall heat to substrates – avoids silvering of laminates
        • Auto stop function to save foil waste
        • Cutting knife for end of job trimming
        • Air cooling offers a wider media range
        • Quiet operation
        • Uses conventional household 220~240V power supply

        Desktop foiling & lamination system ​

        Highly affordable!

        An entry-level foiler/laminator that sits on your desktop!

        The Intec ColorFlare CF350 is a compact and environmentally-friendly, dual laminator and foil-flaring device, designed to offer an in-house decorative effects solution for short-run, on demand digital applications, as well as lamination for traditional litho output too! With the ability to laminate and foil-flare straight out of the box, this high-quality production unit will soon start earning its keep, and you, a great reputation!

        Intec ColorFlare logo

        Please visit www.intecprinters.com for Software download and more information.
