$2,800.00 $0.00 /
Subscription

Remind customers of offers like free shipping and lifetime warranties.

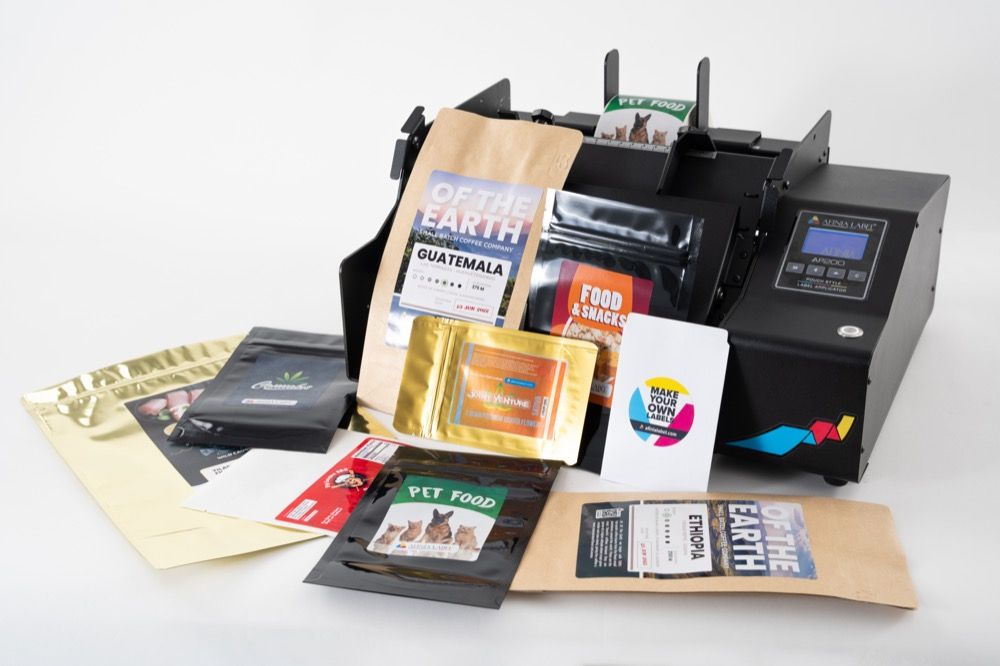

Easily and consistently apply labels to pouches

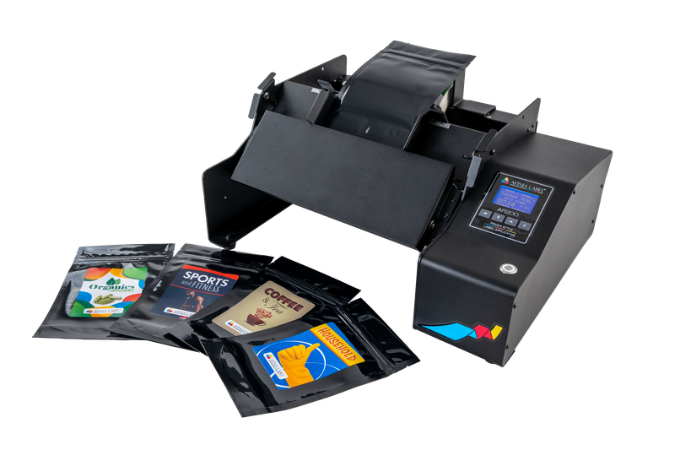

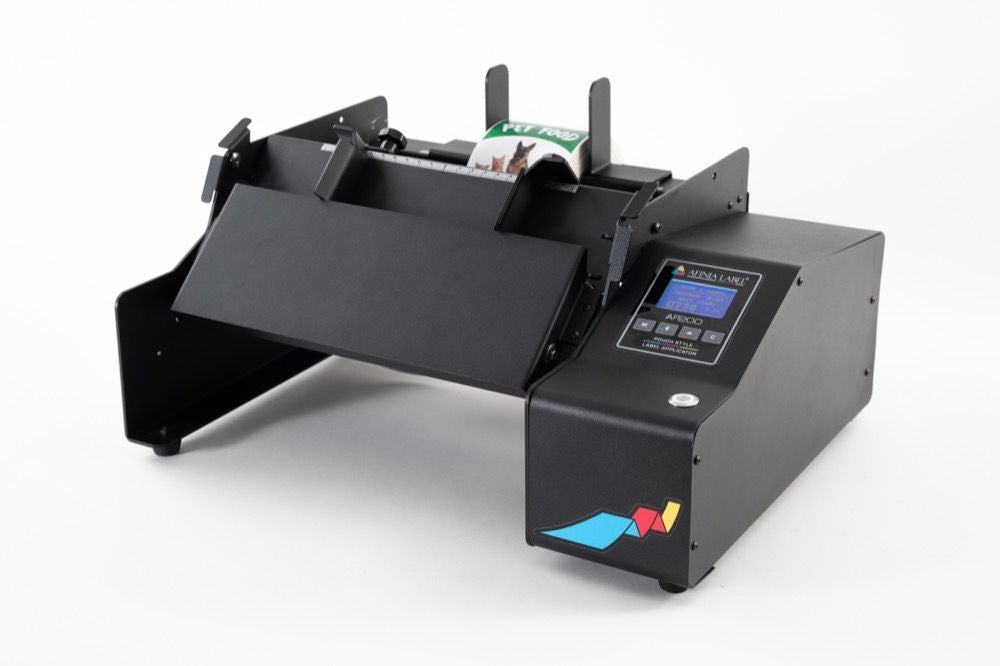

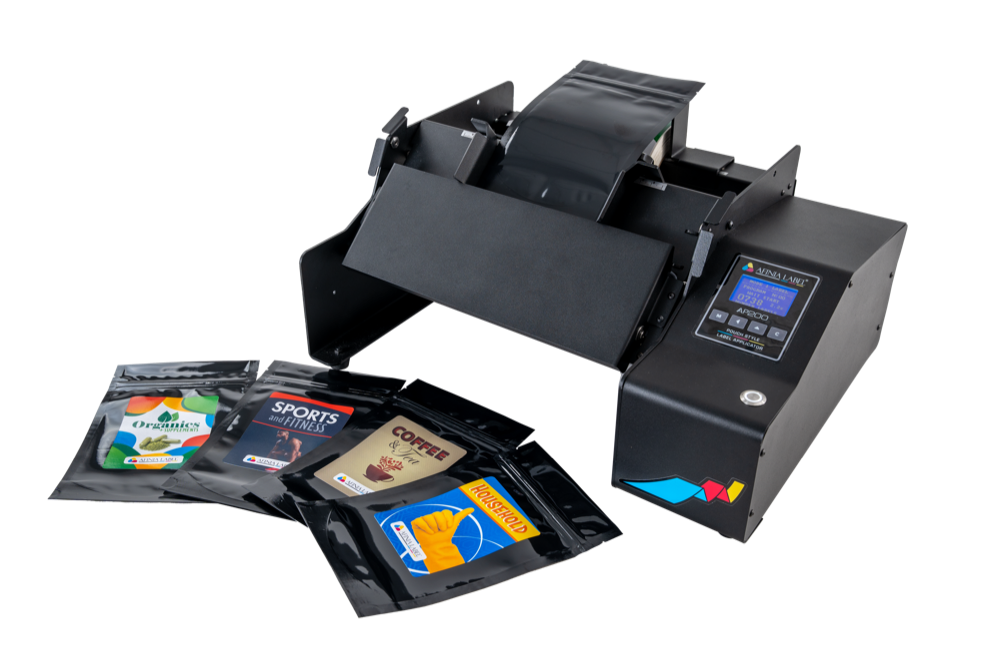

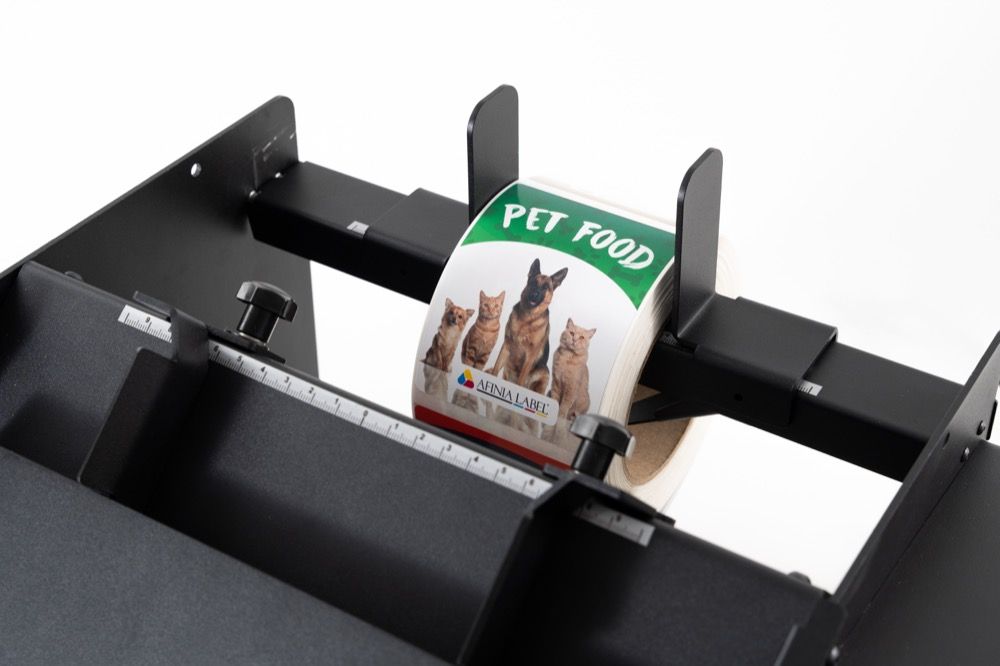

The AP200 is a semi-automatic labeling machine designed for applying labels to unfilled pouches. Labels are easily applied as each pouch is dropped into the machine. Intuitive setup and operation allows for consistent placement and even application.

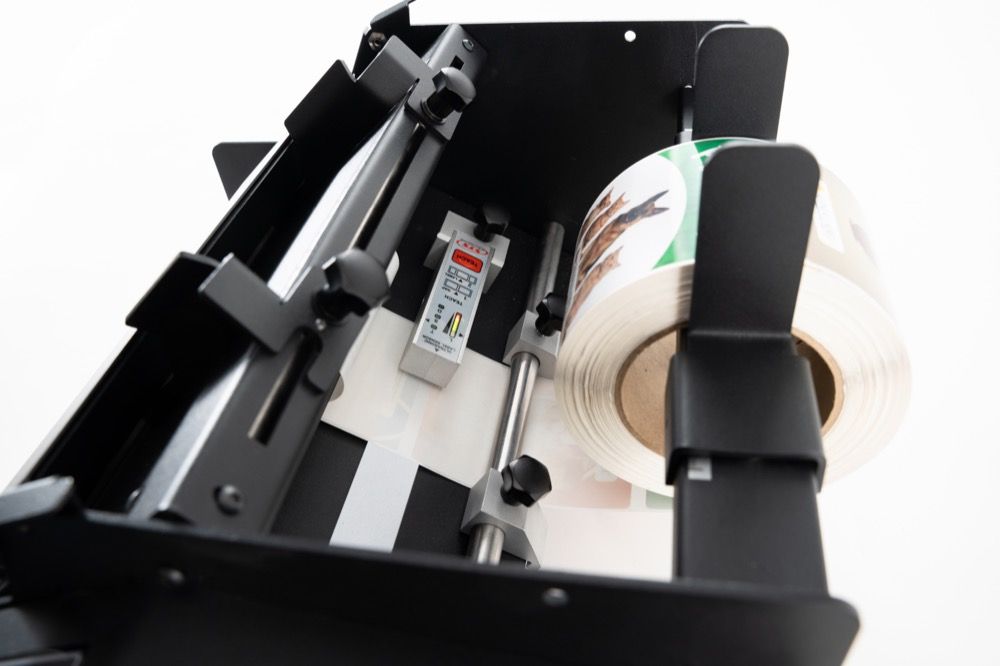

The ultrasonic media sensor is easily trained to detect gaps in a wider range of media than mechanical flag sensors common in other applicators, allowing the AP200 to perform consistently—even on thin, clear, or reflective materials.

A convenient calculator tool is available to make correct settings easy.

  • Designed for flat, unfilled pouches
  • Apply one or two different labels per container
  • Works with zippers and degassing valves
  • Reliable ultrasonic gap sensor

AP200 Details

AP200 pouch labeling machine offsets and label placement diagram



    Technical Data

    Supply voltage North America - 110V AC, 60 Hz — Europe, Middle East, Asia - 220V AC, 50Hz
    Power consumption <100VA.
    Dimensions 17.3" (440mm) W, 9" (230mm) H, 13" (330mm) D
    Machine weight 33 lbs (15kgs)
    Width of Bag 3.2" (80mm) to 9.8" (250mm)
    Length of Bag 4.75" (120mm) to 13.75" (350mm)
    Thickness of Bag <0.2" (5mm)
    Width of label 1" (25mm) to 9.00" (230mm)
    Length of Label 1" (25mm) to 11.81" (300mm)
    Label gap >0.1 inches (2.5mm)
    Diameter of label roll <7.87 inches (200mm)
    Core diameter 2 to 3 inches (50 to 76mm)
    Label feed speed 0.03 to 0.1m/sec - programable.
    Distance to start labeling from
    the edge of the bag    		 Approximately 1.18" (30mm)
    Modes 1 or 2 label modes
