AFINIA LABEL XL Unwinder/Rewinder Roll-to-Roll System
AFINIA LABEL XL Unwinder/Rewinder Roll-to-Roll System
AFINIA LABEL XL Unwinder/Rewinder Roll-to-Roll System
AFINIA LABEL XL Unwinder/Rewinder Roll-to-Roll System

AFINIA LABEL XL Unwinder/Rewinder Roll-to-Roll System

$3,145.00 $0.00 /
Subscription

Remind customers of offers like free shipping and lifetime warranties.

Roll-to-roll label production

For high-volume, continuous printing

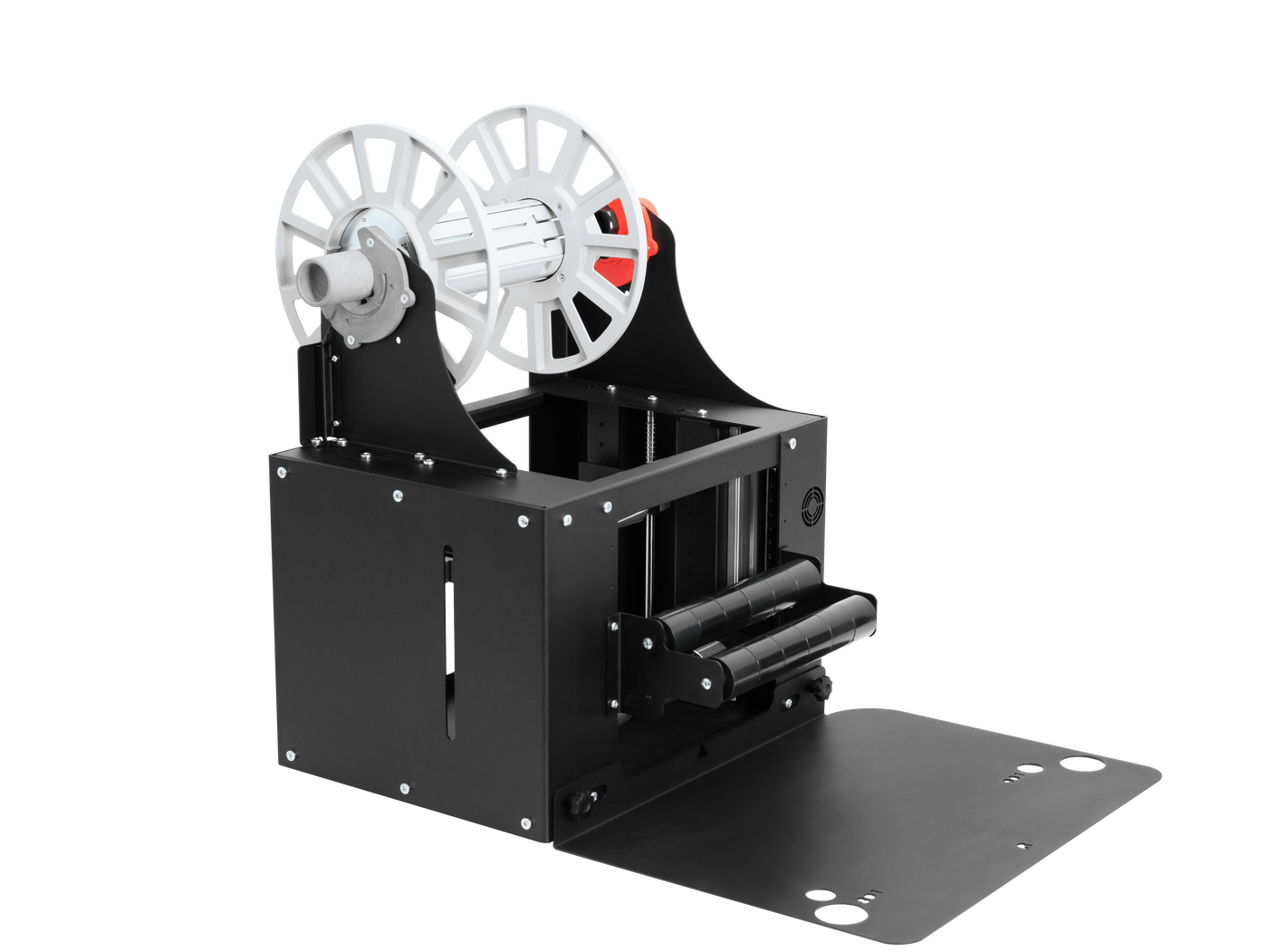

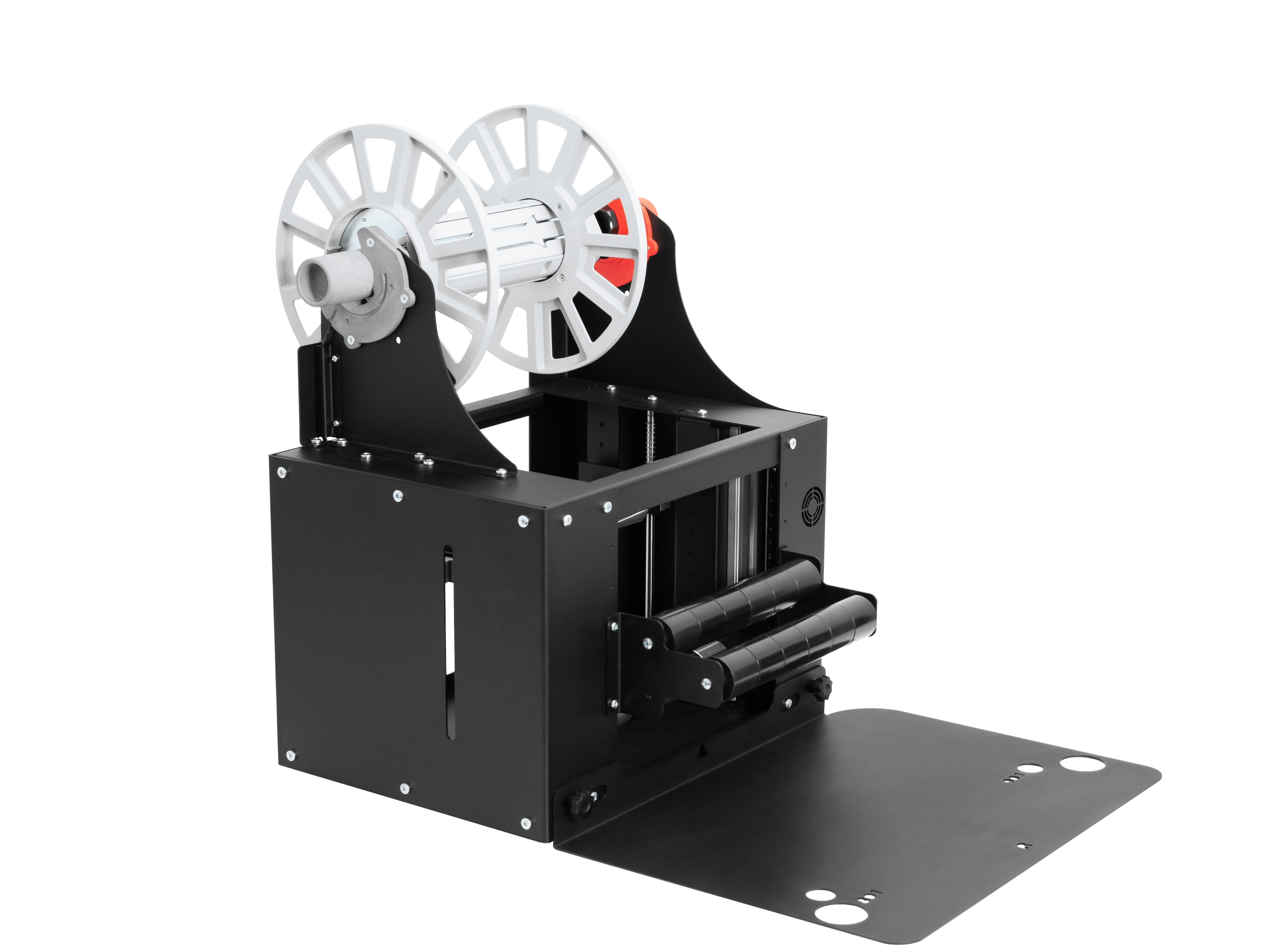

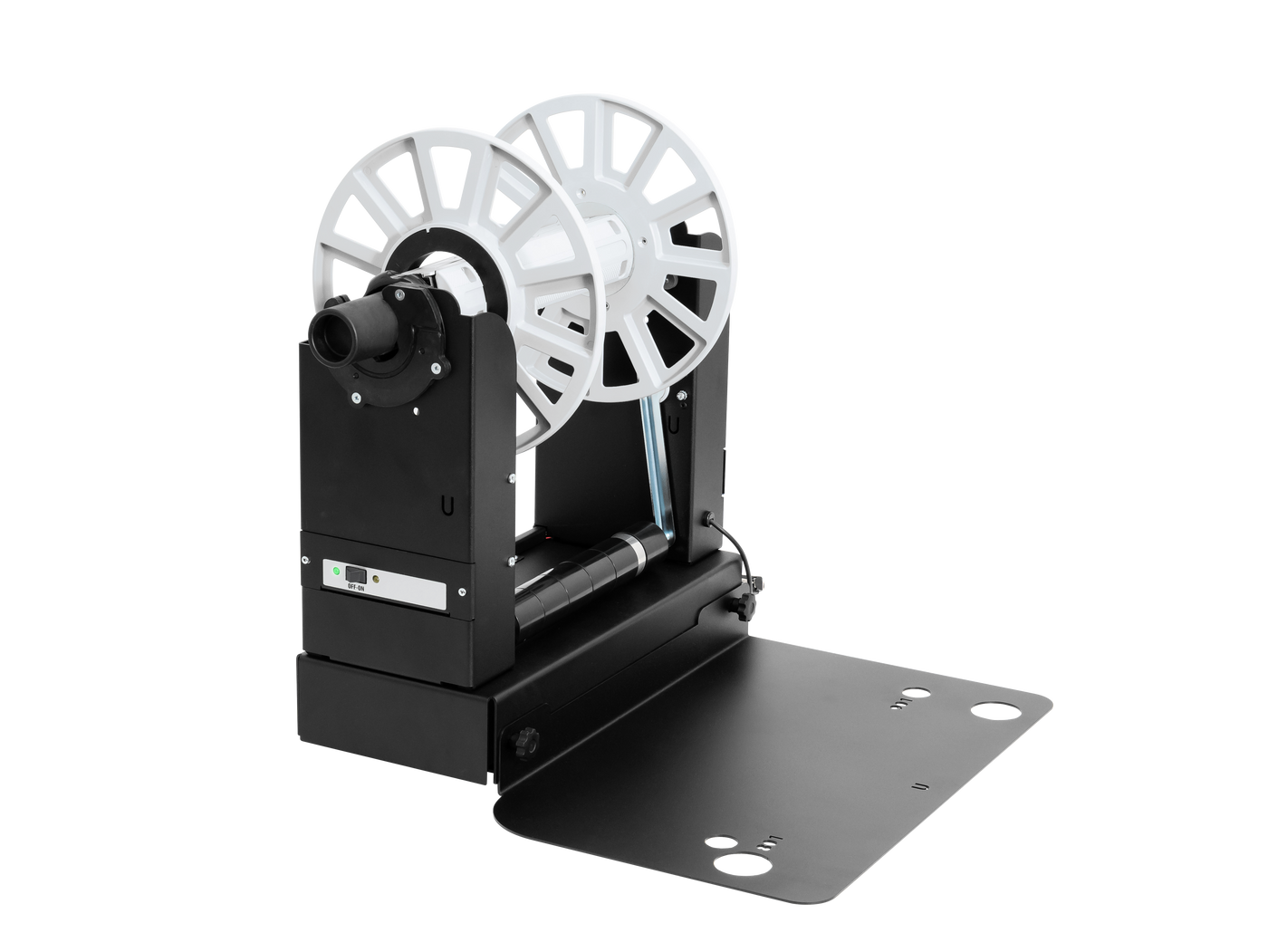

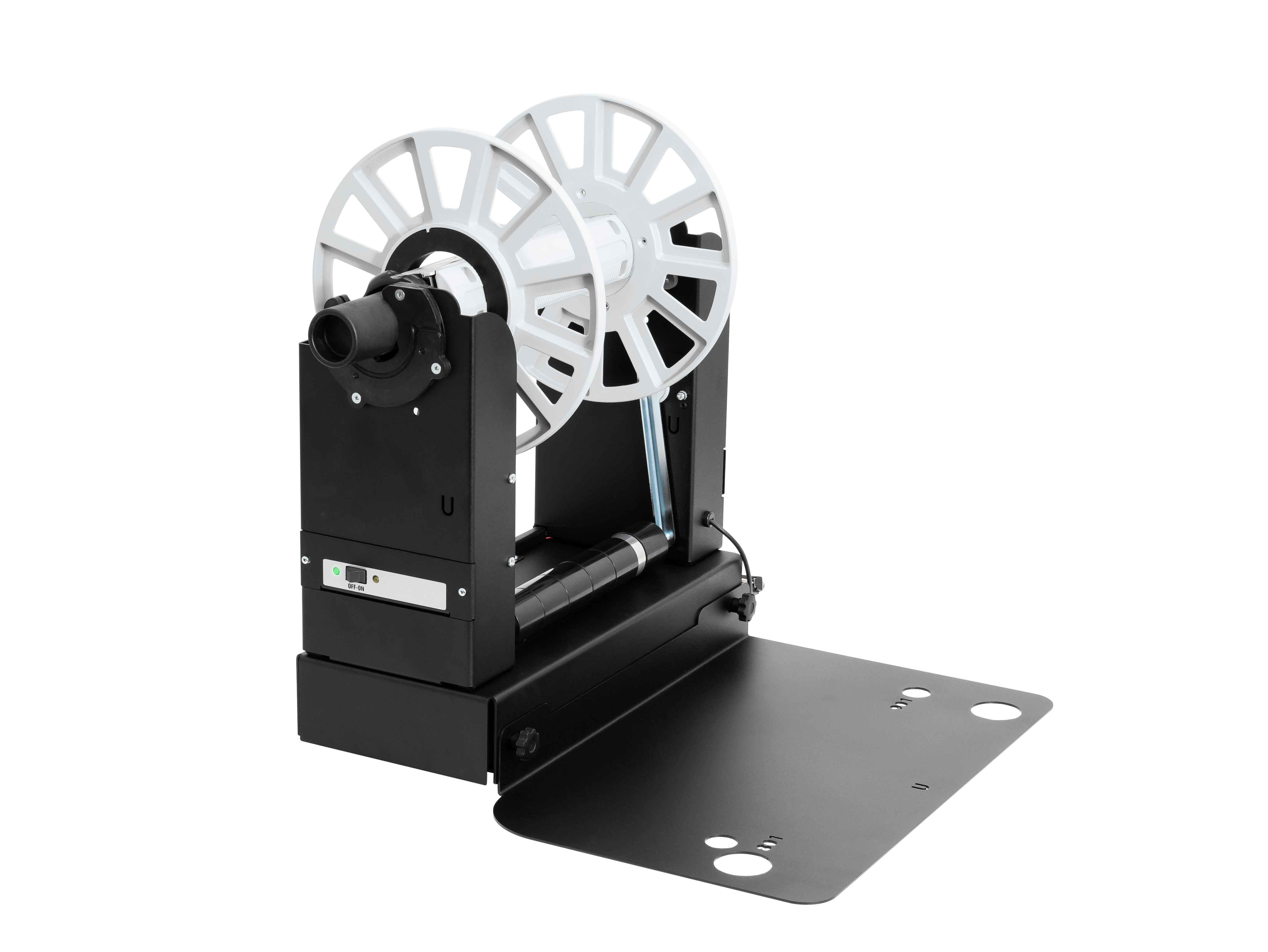

The Afinia Label XL Unwinder/Rewinder system is the ideal accessory for companies looking to run high-volume, continuous jobs in a roll-to-roll configuration.

The XL system uses industrial up-rated motors to ensure that heavier rolls can be handled with ease. A user-controlled clutch allows for easy roll tension adjustment, allowing narrow labels to be rewound precisely without excessive tension that normally causes print errors and issues with wandering material. The maximum roll diameter of 250mm (10 in) allows for a longer uninterrupted workflow, delivering labels directly onto a roll ready for application.

  • High-volume roll-to-roll production
  • Ideal for the Memjet-powered L901
  • Sturdy steel construction
  • Up-rated, industrial-quality motors

Roll to roll digital label printing - Afinia Label

High
10 in (250 mm)
8.5 in (216 mm)
L901, L801

Options

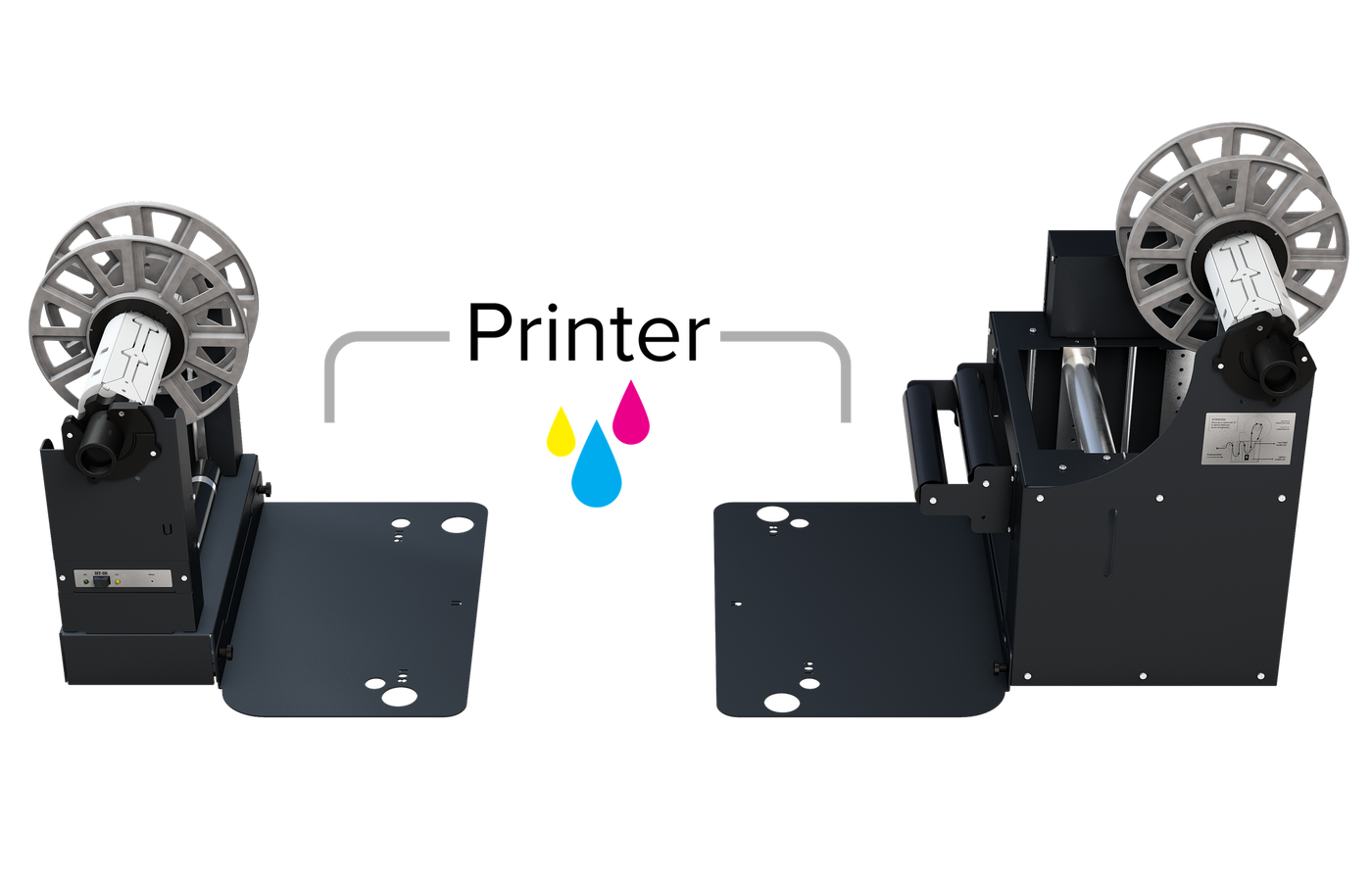

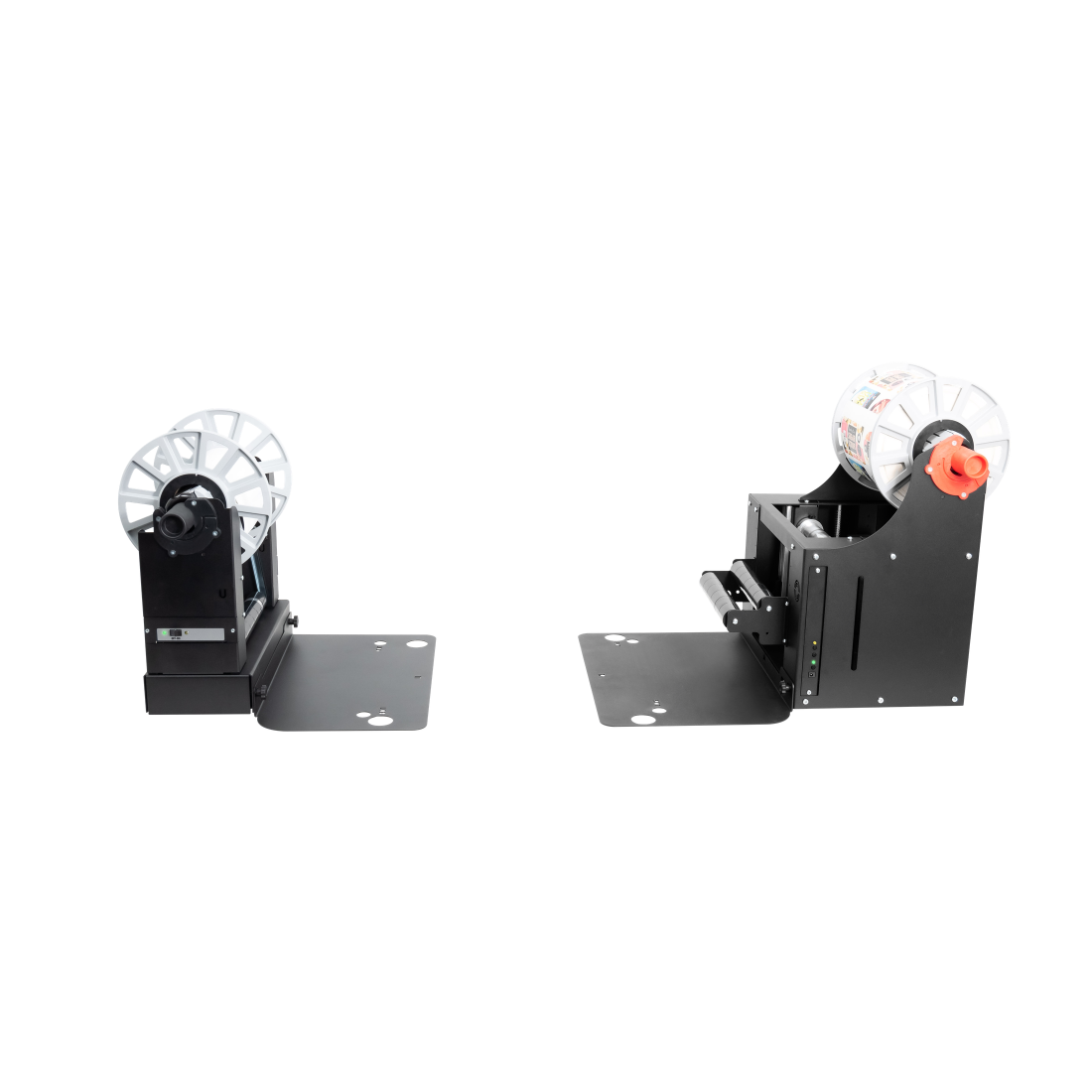

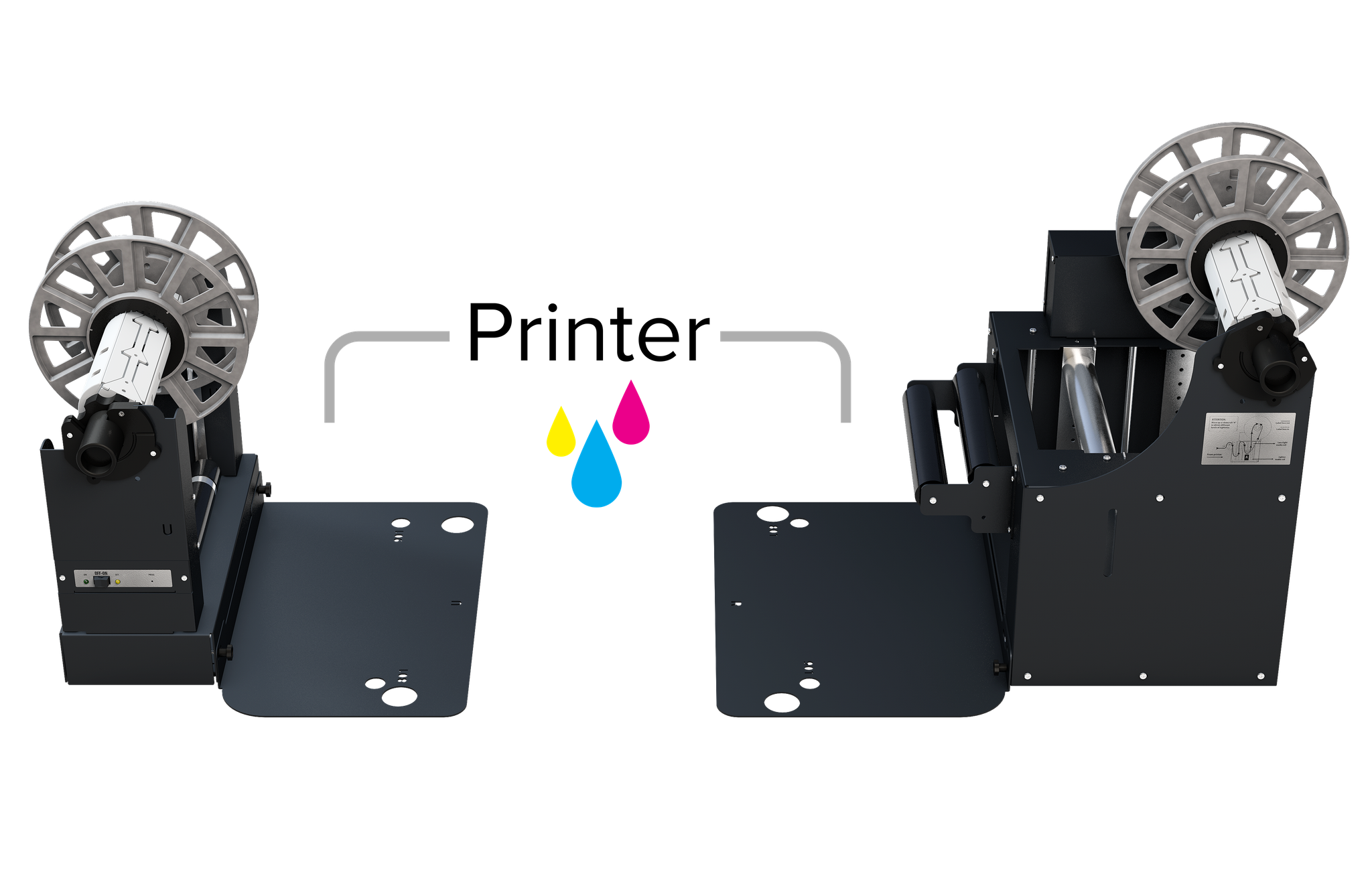

The XL Label Unwinder and Rewinder can be used independently, or together as a complete roll-to-roll system.

Rolls are unwound from and rewound to a standard 3” core. The option to adjust the direction of rotation (clockwise or counterclockwise) allows labels either to be face-in or face-out.

Designed for heavy industrial use

Thanks to their revolutionary design and rugged construction, XL rewinders and unwinders are perfect for high-volume and heavy-duty jobs. Up-rated motors make roll weight a non-issue. The motor is located inside the core holder and—once the job is done—users can easily remove the core holder and printed material.

SPECIFICATION

Maximum Roll OD:
10" (250mm)
Maximum Media Width: 9.4" (240mm)
Maximum Speed: 51 RPM
Core Diameter: 3" (76.2mm)
Agency Certifications CE, FCC, RoHS
Afinia Part Numbers XL Unwinder: 26681
XL Rewinder: 29110
            Only 6 items left in stock
