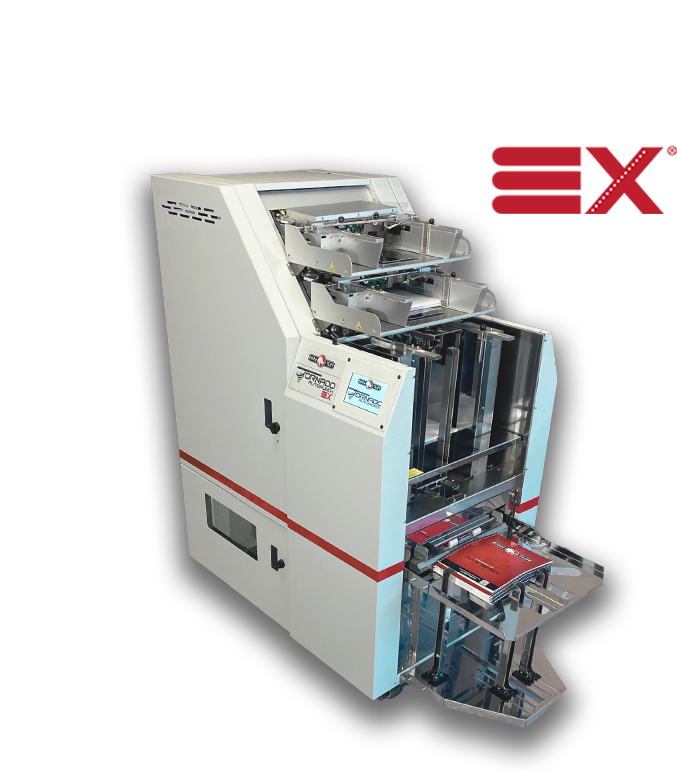

Rhin-O-Tuff Tornado AutoPunch EX Modular Punch Machine with Interchangeable Die Set
Rhin-O-Tuff Tornado AutoPunch EX Modular Punch Machine with Interchangeable Die Set

Rhin-O-Tuff Tornado AutoPunch EX Modular Punch Machine with Interchangeable Die Set

$35,950.00
 - $38,945.00
$0.00 /
Subscription

Select an option to add this to your cart

Remind customers of offers like free shipping and lifetime warranties.

PROVEN TO REDUCE LABOR COSTS BY UP TO 40%

The Tornado Autopunch EX effortlessly collates and punches a diverse range of documents, spanning from essential business reports and day planners to sleek pocket calendars, agendas, and detailed instruction manuals. The Tornado Autopunch EX streamlines print production processes, boasting the ability to produce over 100 books per hour across most document configurations. By leveraging automated punching and binding equipment, businesses can enhance productivity, reduce labor costs, and ultimately improve profitability in the new year and beyond.

The Tornado Autopunch EX® significantly reduces labor requirements by automating the collating and punching steps. This translates to substantial cost savings for businesses, with the potential to reduce the workforce by 50%.
  • World’s First Automated Collating Punch: A single near-line automated collation and punching platform to meetthe needs of your on-demand print environment with a quick return on investment.
  • Advanced Media Handling Technology: Powered by BDT’s patented Tornado Technology to separate, lift and transport the widest range of media, including printed media and other book components like covers, tabs and inserts reliably minimizing downtime.
  • Automated Interposing of Covers/Index Tabs/Inserts: Interposer Bins holds book media, auto-collating front/back covers, inserts and index tabs into the book stack during punching. No manual collation required. Machine can also be run in collate-only mode.
  • Paper AccumulationTechnology: Designed to accumulate covers, tabs and document sheets and auto-adjust the punch lifts depending on the type of media being run for maximum punching performance..
  • NO MANUAL COLLATION OF COVERS, INDEX TABS AND INSERTS
  • NO MANUAL PUNCHING OF COVERS, INDEX TABS OR INSERTS
  • NO MANUAL SEPARATION OF BOOK STACKS AFTER PUNCHING
  • NO MANUAL PAPER LIFT PUNCHING
  • 7" TOUCHSCREEN DISPLAY -7" (178MM) TOUCH FUNCTION COLOR DISPLAY.JOB SET-UP & MONITORING: QUICK START MODE, PRESET MEDIA TYPES, JOB STATUS. DISPLAYS PUNCH/DIE CYCLE COUNT AND CHIP BIN STATUS.
  • SHEET SIZES - PUNCHED EDGE: 8.27" (210MM) TO 12" (305MM),
    UNPUNCHED EDGE: 5.5" (139.7MM) TO 12.5" (317.5MM),
    INDEX TABS: UP TO 1/2" (12.7MM) TAB EXTENSION
  • MEDIA - 60 - 312 GSM INCLUDING: UNCOATED BOND PAPER, TEXT/OFFSET
    COATED PAPER PAPER, PLASTIC (ACETATE/PVC) & VINYL COVERS/TABS
    *PLASTIC MEDIA MUST BE RUN FROM AN INTERPOSER BIN ONLY
  • INTERPOSER CAPACITY UP TO 1" (25MM) OF COVERS/INDEX TABS/INSERT SHEETS
  • MAIN BIN CAPACITY UP TO 2500 SHEETS OF 75GSM (20LB.) BOND
  • PUNCHING SPEED UP TO 10,800 SHEETS PER HOUR!
  • INTERCHANGEABLE DIE SETS LETTER (US) AND A4 (INTL) FORMATS IN 9 BINDING STYLES
  • OFFSET STACKER UP TO 2700 SHEETS OF 75GSM (20LB.) BOND
  • Volts AC 115
  • Machine weight 700 LBS lbs
  • Shipping weight 46 lbs
  • Dimensions 57.7" height x 29.5" width x depth 50.3"
  • Made in USA
  • 6 year mechanical warranty

DIE SET STYLES

  • 19/21 HOLE PLASTIC COMB
  • 4:1 COLOR COIL - ROUND AND OVERSIZED OVAL HOLE (.2475" OR 6MM)
  • 3:1 TWIN LOOP WIRE - SQUARE AND ROUND HOLE
  • 2:1 TWIN LOOP WIRE - SQUARE AND ROUND HOLE
  • 11/12 HOLE VELOBIND
  • LOOSE-LEAF - 3-5-7 HOLE AND 2-HOLE MEDICAL (8.5" SIDE)
  • LOOSE-LEAF - A4 2-4 HOLE
