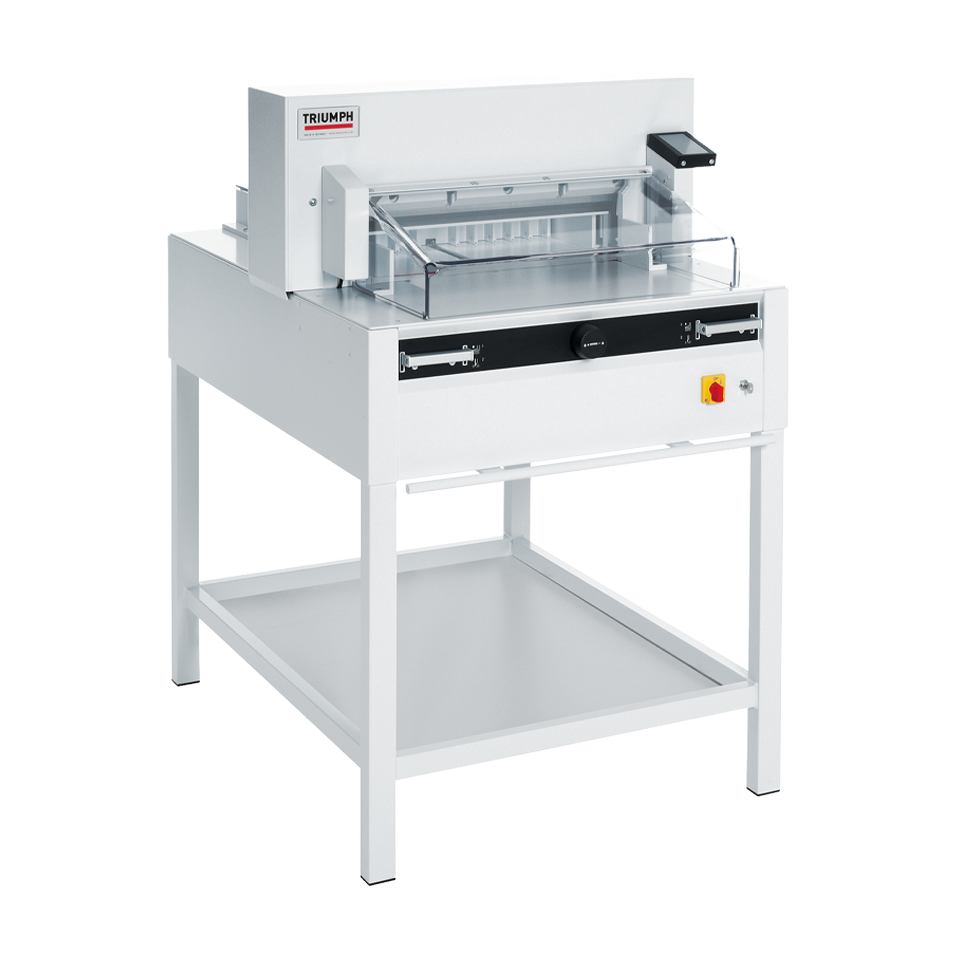

MBM Triumph 5255 20 3/8" Automatic Programmable Paper Cutter
MBM Triumph 5255 20 3/8" Automatic Programmable Paper Cutter
MBM Triumph 5255 20 3/8" Automatic Programmable Paper Cutter
MBM Triumph 5255 20 3/8" Automatic Programmable Paper Cutter
MBM Triumph 5255 20 3/8" Automatic Programmable Paper Cutter

MBM Triumph 5255 20 3/8" Automatic Programmable Paper Cutter

$14,359.00
 - $15,629.00
$0.00 /
Subscription

Select an option to add this to your cart

Remind customers of offers like free shipping and lifetime warranties.

 SPECIFICATIONS
  • Cutting Width: 20 3/8"
  • Cutting Height: 3"
  • Length Behind Blade: 20 3/8"
  • Narrow Cut: 1 3/8"
  • Clamp Type: Automatic
  • Blade Material: German steel
  • Horsepower: 2
  • Electrical Requirements: 115 V. 60 Hz., 20-amp dedicated line
  • Dimensions (D x W x H): 44" x 33 7/8" x 51" (56 1/2 W with side tables)
  • Shipping Weight: 648 lbs (669 with side tables)

FEATURES

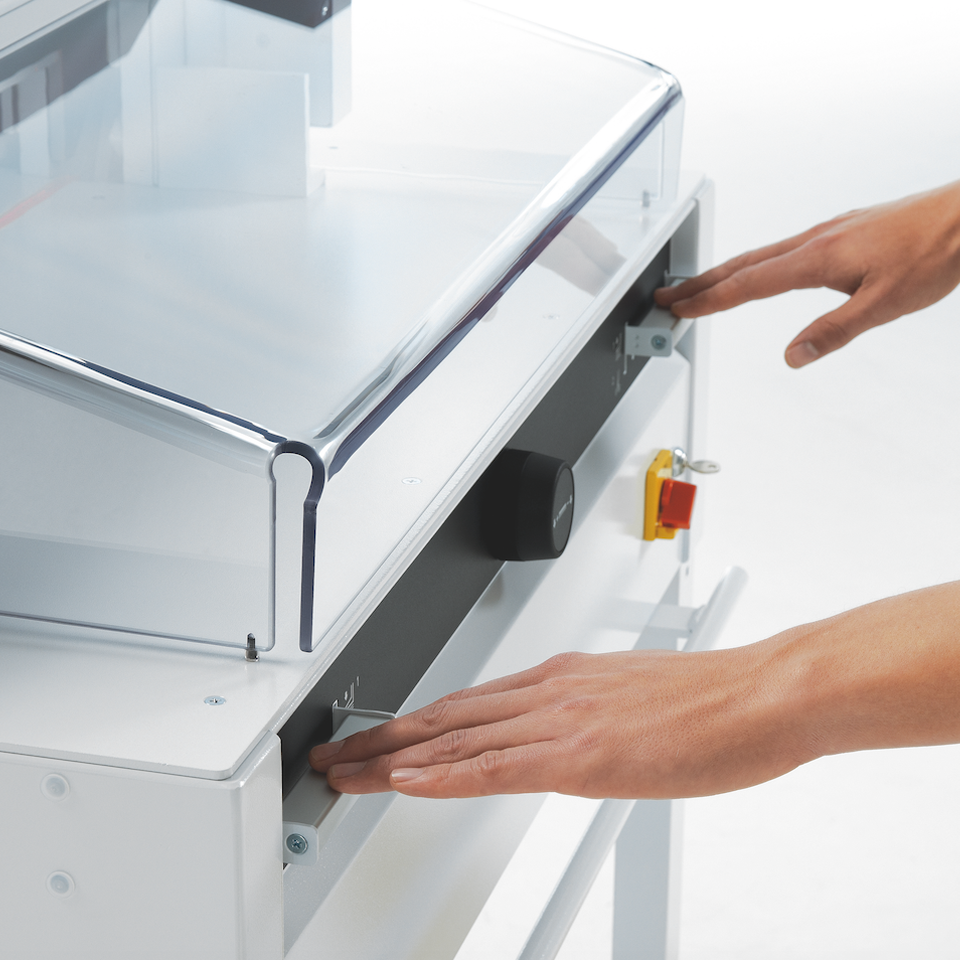

  • Patented EASY CUT electronic blade activation bars for true two-hand operation

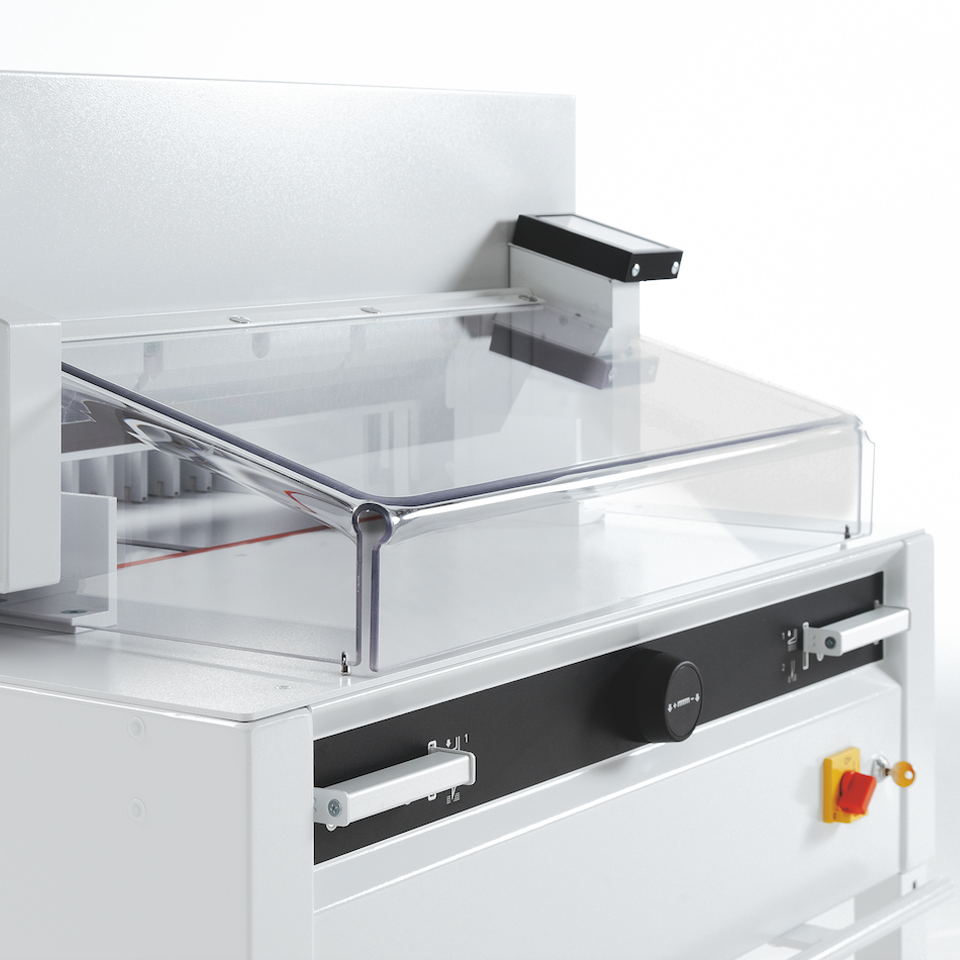

  • Transparent, electronically controlled front safety guard
  • Safety cover on rear table
  • Main switch and safety lock with key
  • 24 volt controls (low voltage)
  • Patented IDEAL safety drive
  • Automatic blade return from every position
  • Disc brake for instant blade stop
  • Blade changing device covers cutting edge of blade
  • Blade depth adjustment from outside of machine
  • Blade and cutting stick can be changed without removing covers
  • Programmable cutter with automatic clamp, power back gauge, and digital touchpad
  • Ergonomic, 37" working height
  • Electric blade and clamp drive

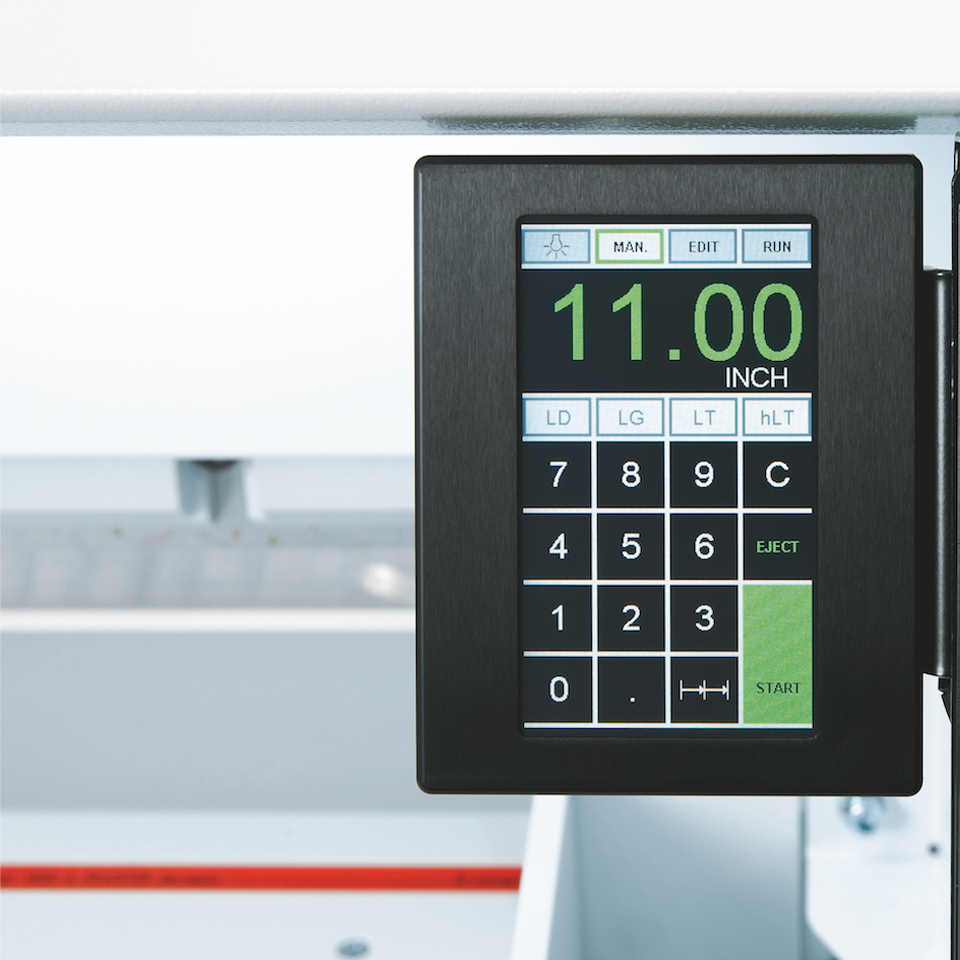

  • Electric back gauge drive with touchpad for easy programming
  • Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
  • Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
  • Pre-programmed for standard paper sizes
  • Memory key for repeat cuts
  • Automatic SET function for reference measurement and EJECT function for pushing out paper
  • Self-diagnostic system with error indication on display
  • Electronic hand wheel with variable speed control for manual back gauge setting

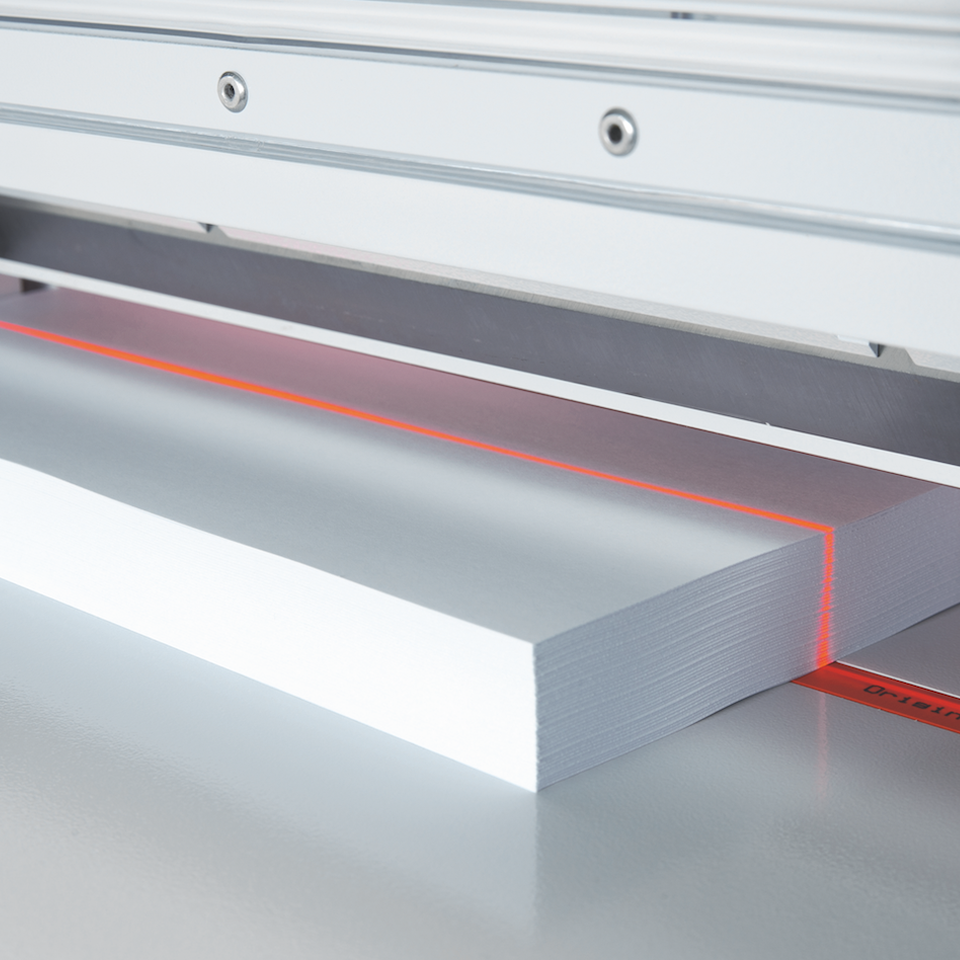

  • Bright, LED optical cutting line
  • Adjustable, spindle guided back gauge with narrow separations and plastic gliders
  • Dual side guides on front and rear tables
  • High quality, German steel blade
  • Solid steel blade carrier and adjustable blade guides
  • All-metal construction
  • Includes stand with storage shelf, easy-access tool holder, and paper blocking tool
  • Optional side tables increase work surface
  • 1-year limited manufacturer warranty, excluding wearables
  • Ships via freight truck (large truck dock-to-dock or liftgate-to-ground delivery).
  • UL and C UL approved
                Only 16 items left in stock
