GRAPHTEC CE7000-40 15" Desktop Vinyl Cutter & Plotter
GRAPHTEC CE7000-40 15" Desktop Vinyl Cutter & Plotter
GRAPHTEC CE7000-40 15" Desktop Vinyl Cutter & Plotter

GRAPHTEC CE7000-40 15" Desktop Vinyl Cutter & Plotter

$1,495.00 $0.00 /
Subscription

Remind customers of offers like free shipping and lifetime warranties.

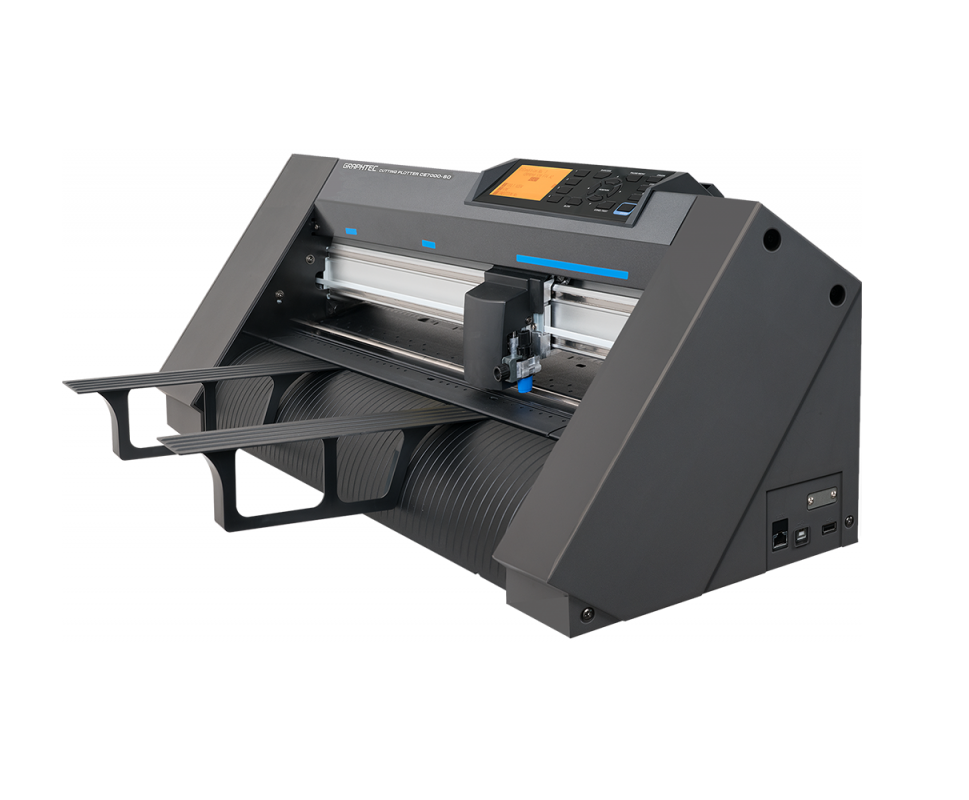

Introducing the powerful and versatile desktop model CE7000-40 cutting plotter. The perfect solution for your
SIGNAGE Graphics • PRINT & CUT Graphics • Garment Decoration and many more…

Introducing the powerful and versatile desktop model CE7000-40 cutting plotter. The perfect solution for your
SIGNAGE Graphics • PRINT & CUT Graphics • Garment Decoration and many more…

CE7000-40 FEATURES:

• New 8.0 ARMS for Fast, Accurate Print & Cut Applications with XY Compensation
• Data Link Bar Code Feature for Maximum Productivity
• NEW Easy-to-use USB Thumb Drive Connectivity - NO Computer Needed!

The CE7000-40 boasts our Popular Cutting Channel to allow easy perforated cut or through cut operations.

The CE7000-40 comes complete with our full complement of Graphtec Software along with our NEWLY ADDED Ethernet Connectivity. Software includes Cutting Master 4 plug-in for Adobe & Corel Users and our popular Graphtec Pro Studio software for design & cut graphics. The CE7000-40 works with both PC and MAC platforms, or use the handy New USB Thumb Drive Port if needed.

Screen Shot 2020-03-06 at 11.50.04 AM.png


CLICK FOR PRODUCT SPEC SHEET

SPECIFICATIONS

Configuration

Grit roller with digital servo drive system

Maximum Cutting Area (W x L)

15" x 164'

Cutting area of
Guaranteed Accuracy (W x L)

14" x 79"

Mountable media width

2" - 19"

Number of push rollers

2 rollers

Maximum cutting speed

24"/s, in all directions

Maximum acceleration

69.6' (21.2 m/s2), at 45º direction

Maximum cutting force

4.41 N (450 gf) in 38 steps

Minimum character size

Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media)

Programmable resolution

GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm

Repeat-ability

Max. 0.1 mm in plot up to 2 m (*1)

Mountable number of tools

1 tool

Blade type

Supersteel

Pen type

Oil-based ballpoint, Water-based fiber-tip pen

Media type

Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film up to 25 mil (.63mm), Stencil material

Interface

USB 2.0 (Full Speed), Ethernet
10BASE-T/100BASE-TX

Buffer memory

2 MB

Command sets

GP-GL / HP-GL™ (Set by command or auto-detect)

Display

Graphic type LCD with back-light (240dots x 128dots), supports 10 languages

Registration Mark
Sensing System

Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection

Alignment accuracy

Maximum 0.3 mm with printed image (when reading registration marks specified by this machine)

Power source

100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz

Power consumption

120 VA

Operating environment

10 to 35 ºC, 35 to 75 % R.H. (non-condensing)

Guaranteed accuracy environment

16 to 32 ºC, 35 to 70 % R.H. (non-condensing)

External dimensions
(W x D x H)

Approx. 30.4" x 11.5" x 12.3"

Weight (Approx)

27.7 lbs (13kg)

Compatible OS (*2)

Windows 11 /10 / 8.1 / 64-bit editions Mac OS 10.2 (Sierra) to 13 (Ventura)

Included Software (download)

Graphtec Studio 2, Cutting Master 5 for Windows and Mac

Compatibility Standards

Safety

PSE, UL/cUL, CE mark

EMC

VCCI Class A, FCC Class A, CE mark

FEATURES


DATALINK BARCODE

Save time and reduce the chance of production errors by using barcodes to automatically process multiple jobs at the touch of a button.

DataLink supports any combination of RIP software & printer in addition to included Cutting Master 4 and Graphtec Pro Studio software.

The CE7000 detects barcode-linked cutting data from the operator's PC or USB flash memory, opens the correct file, sets the cutting conditions, and starts cutting automatically.


CONTOUR & DIE CUT

Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.




ARMS 8.0

A new and improved Advanced Registration Mark Sensing System, or ARMS, for print and cut applications. The DataLink Barcode system is the new addition to ARMS. Barcodes may now be generated and printed as part of the design which creates a hand’s free operation. The reading of Registration marks is faster increasing productivity.


NETWORK CONNECTION

A network connection is now possible through a network interface enabling the use of TCP/IP protocols to transfer cut data.


Please visit www.Graphtecamerica.com for Software download and more information.
