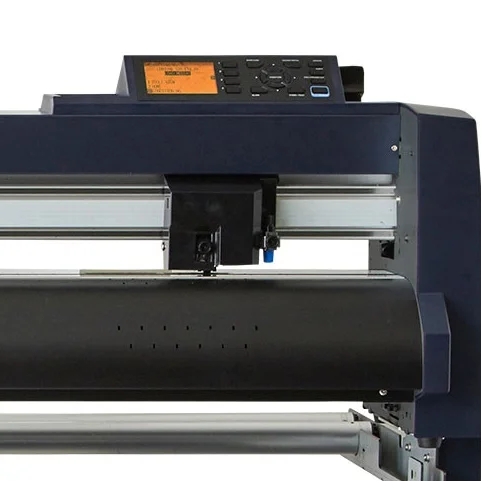

CPU
32-bit CPU
Configuration
Grit rolling plotter
Drive method
Digital servo drive
Max. cutting speed
58.5 inches per second (45 degree direction) 41.3 (axis direction)
Cutting force
Max. 600 gf in 48 steps
Axial acceleration
Max. 39.2 m/s2 (4 G) in 8 steps
Max. cutting area(*1)
30 in x 164 ft
Guaranteed Precision Cutting Area (*1)
29.21 in x 50 ft
Mountable media width(*2)
Min. 1.96 in
Max. cross cut width
30 in
Number of push rollers
2 rollers
Compatible roll media diameter
Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)
Mechanical resolution
0.005 mm
Programmable resolution
GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
Distance accuracy (*2)
Max. 0.1 mm or 0.1 % of plotted length
Repeatability (*2)
Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)
Minimum character size
Approx. 5 mm alphanumeric (varies depending on character font and media)
Mountable number of tools
1 tool (cutting blade, plotting pen or pouncing tool) in standard;
Blade types
Supersteel (0.9 mm or 1.5 mm diameter)
Pen types
Water-based fiber-tip pen, Oil-based ballpoint pen
Pouncing tool type
Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)
Media types (*3)
Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick
Compatible paper for pouncing
Regular paper from 0.06 to 0.13 mm thick
Cross-cutter
Built into the tool carriage
Perforation cutting
Supported (performed by force control)
Interface
USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory
2 MB
Command sets
GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)
Condition settings
Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)
Display
Graphic type LCD (3.7-inch, backlight)
Power source
100 V to 240 V AC, 50 / 60 Hz
Power consumption
AC100-240 V, 50/60 Hz
Operating environment
50 to 95 ºF, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment
60 to 89 ºF, 35 to 70 % R.H. (non-condensing)
External dimensions
50" x 28" x 48"
Weight (*8)
108 lbs.
Included Software(*6) )
Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac
Compatible OS (*5)
Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura)
Safety
PSE, UL/cUL, CE mark)
EMC
VCCI Class A, FCC Class A, CE mark
FEATURES
Save time and reduce the chance of production errors by using barcodes to automatically process multiple jobs at the touch of a button.
DataLink supports any combination of RIP software & printer in addition to included Cutting Master 4 and Graphtec Pro Studio software.
The FC9000 detects barcode-linked cutting data from the operator's PC or USB flash memory, opens the correct file, sets the cutting conditions, and starts cutting automatically.
UNRIVALED PRINT / CUT ACCURACY
Graphtec’s A dvanced R egistration M ark S ensing technology delivers precise Print / Cut results in addition to efficiency boosting features.
The new white LED sensor and improved search algorithm accurately read registration marks printed from any printer onto a large variety of media types including high gloss, metallic, glitter, and high intensity reflective.
No flatbed? no problem.
A re-engineered feeding system has greatly enhanced the cutting capabilities of thin and thick media types.
Add additional push rollers for increased precision when cutting heavy, rigid materials such as magnet, rubber, and diamond-grade high intensity reflective. Three pressure settings ensure strong media hold-down without leaving track marks.
Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.
*1: Operated with Graphtec specified cutting conditions and media. For long-length cutting, the basket is used.
*2: There are conditions for operation when setting the media.
*3: HP-GL is a registered trademark of Hewlett-Packard Company.
*4: CB15UA/CB15UA-K30 blades and reinforced backing sheets are recommended for certain grades of high- intensity reflective film.
*5: Graphtec does not support software / drivers used with operating systems that have become obsolete and are no longer supported by the OS developer.
*6: Software is available for download from Graphtec’s website.
*7: It requires an internet connection in order for activation or registration when starting the software for the first time.
*8: Includes stand and basket.
INCLUDED ITEMS
Item
Qty
Description
Power cord
1
The type of cord is different by destination
USB Cable
1
9.5 feet long
Cutting blade holder
1
PHP33-CB09N-HS
Cutting Blade
1
CB09UB
Loupe
1
PM-CT-001
Fiber-tip pen holder
1
PHP31-FIBER
Water-based
1
KF700-BK (black)
Stand
1
Parts kit
Media stocker
1
Parts kit
Basket
1
Parts kit for FC9000-75
Parts kit for FC9000-100
Parts kit for FC9000-140
Parts kit for FC9000-160
Flange Set
1
OPH-A21
DVD-ROM
1
User manual, Windows driver, Graphtec Pro Studio (Windows, 1 license),
Printed Documents
2
Setup Manual, Cutting Blade Manual, and Safety Manual
Please visit www.Graphtecamerica.com for Software download and more information.
